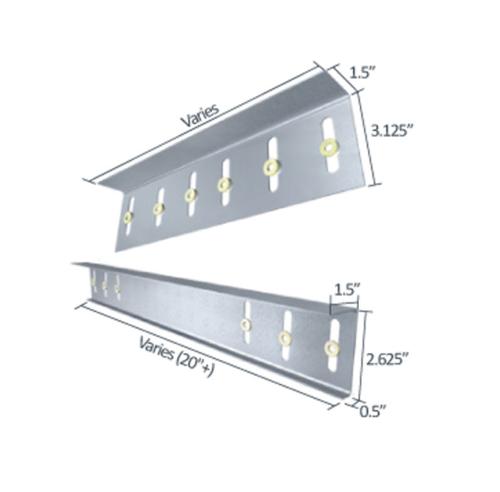

6 in TSN VertiClip SLS Bypass Structure

The VertiClip® SLS connects exterior curtain wall studs, bypassing the building’s structural frame, while allowing for a vertical deflection of the structure up to 1½” (¾” up and ¾” down). VertiClip’s unique design provides both an anti-friction and anti-seizure connection between the clip and the stud web surface thereby preventing a transfer of vertical forces into curtain wall framing, which is not engineered to support axial loads. Allowable loads are based on use of two #12 screws for attachment to stud (provided by TSN).

Features

• Provides a positive, load-rated, mechanical attachment to web of stud
• Eliminates friction-based assemblies
• Utilizes only certified, 50ksi steel
• Eliminates untested “scabs” or shims
• Load rated screws provided
• Step Bushings pre-installed for accurate placement
• Meets all building code criteria
• Adaptable for multiple configurations
• Align wall studs quickly and easily by accounting for construction tolerances
• Lightweight assembly
• Eliminates bridging or strapping within the bridging spacing from the connection

50 pcs/ctn
