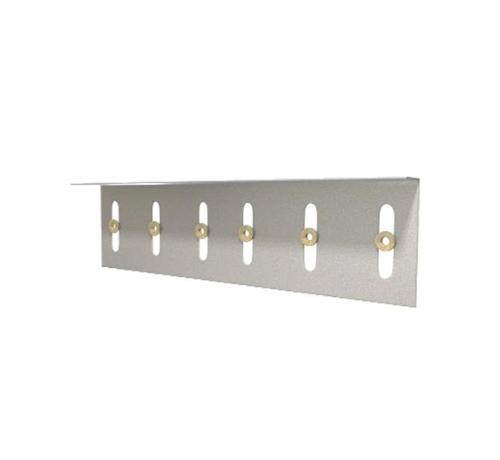

This vertical deflection strut is used to connect exterior cold-formed steel curtain wall studs to structural steel frame when large stand-off conditions exist, bypassing the primary structure, while allowing for a vertical deflection of the structure up to 1 ½” (¾” up and ¾” down). TSN’s patented Step Bushing Technology provides an anti-friction and anti-seizure connection between the clip and the stud web surface.
Features
- Variety of lengths available
- ICC-ES Approved, report #ESR-2049
- LARR Approved, report #25631
- Load-rated positive mechanical attachment at each stud
- Patented Step Bushing Technology provides friction-free motion for smooth vertical deflection
- Eliminates loose friction-held assemblies, heavy deep-leg track, & top row of wall bridging/strapping
- Load-rated #12 screws provided for vertical deflection connection to stud web
- Manufactured with certified, 50ksi, 68mil, G90 cold-formed steel
50 pcs/ctn
